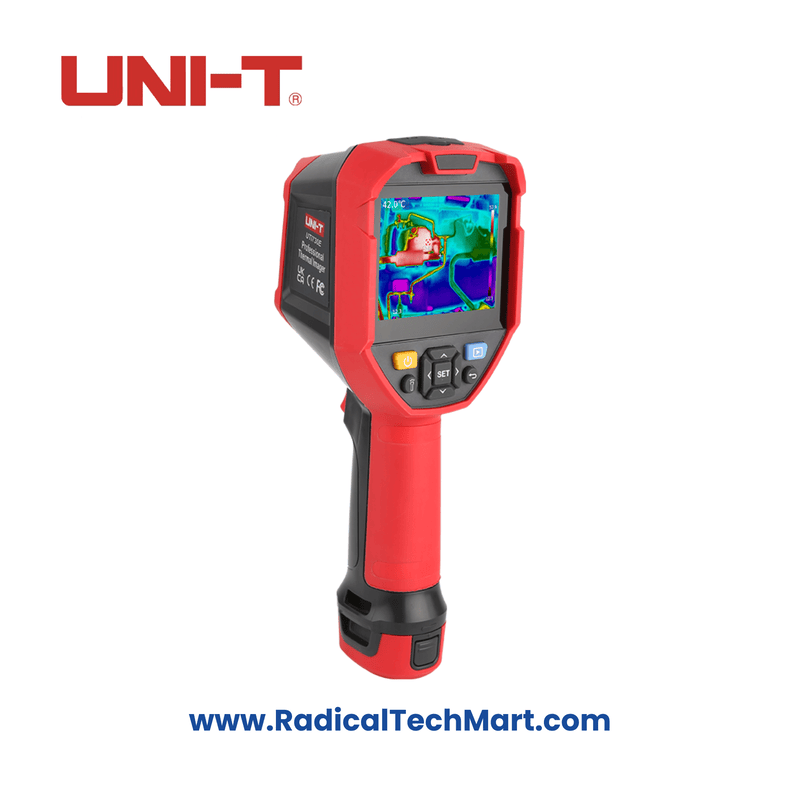

UNI-T UTi730E Enhanced Thermal Camera

The UTi730E is an advanced thermal camera equipped with Wi-Fi capability, designed for a range of industrial and diagnostic applications. It features a large 3.5” IPS display screen (640×480 pixels) and provides a thermal resolution of 320×240 pixels, with a 2MP visual camera to capture clear images. The camera can also blend both thermal and visual images for better analysis.

Key features of the UTi730E include:

• Temperature Measurement Range: -40℃ to 400℃ / -40℉ to 752℉
• Thermal Sensitivity (NETD): ≤65mK for accurate thermal detection.
• Focus: Focus-free operation for easy use.
• Frame Rate: ≤9Hz, ensuring smooth thermal video capture.
• Emissivity: Adjustable between 0.01 to 1.00, with a default of 0.95.
• Digital Camera: 2MP resolution with 2x and 4x digital zoom options.
• Image Modes: Includes Thermal, Visual Image, Fusion, and Picture-in-Picture (PIP).
• Color Palettes: Seven options available including White Hot, Black Hot, Red Hot, Ironbow, HC Rainbow, Rainbow, and Lava for flexible visualization.
• On-Screen Analyzer: Offers various tools such as 5 Points, 1 Line, 3 Rectangles, and 3 Circles to help with data analysis.
• Isotherm Function: Multiple modes including Auto, Ratio, Below, Above, Section, and Manual.
• Temperature Alarm: Auto alarm for high and low temperatures, accompanied by a LED flashlight for easy use in low-light conditions.
• Battery: Equipped with a 5200mAh detachable Li-ion battery pack, providing a continuous operation time of over 3 hours (with Wi-Fi off). The battery is Type-C rechargeable and can be replaced easily for extended use.
• Wi-Fi Connectivity: Allows real-time image projection and analysis through the mobile app and PC software.
• Storage: 16GB Micro SD card for storing images and videos in JPEG format.
• Durability: The camera is IP54 rated for water and dust resistance and is drop-proof up to 2 meters.

Additionally, the UTi730E includes standard accessories such as a micro SD card, Type-C USB cable, Li-ion battery pack, and an English manual. The camera is CE, UKCA, FCC, and RoHS certified, making it compliant with international standards.

Product Dimensions: 260mm × 97mm × 99mm
Weight: 654g
Warranty: 1 Year.
